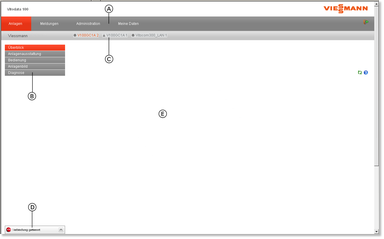

Menu overview

The Vitodata 100 app includes the following sections:

	Main menu
	Submenu
	Device bar
	Connection menu (only visible if communication between Vitocom and Vitodata 100 is established via mobile networks, e.g. with Vitocom 300, type GP2)
	Working section; contains the currently selected screen

The main menu includes the following menu options:

Systems	Open system. Edit data and settings for existing systems. Add systems. Delete systems that are no longer required.
Messages	Table with messages for all systems, which have been transmitted within the last 90 days by Vitodata 100.
Administration	User administration for editing Vitodata 100 users and for inviting guest users. Central settings, e.g. for the Auto-log-off function.
My data	Contact details for editing personal credentials. Invitations for managing all invitations of the user currently logged on.

Depending on the main menu that is open and the system equipment level, the submenus contain various vertically arranged menu options with system-specific functions of the Vitodata 100.

Device bar

The device bar (line below the main menu entries) includes the following functions:

Display the System name.
Display and selection of the devices that belong to the heating system.

Connection menu

The connection menu is only visible if communication between Vitocom and Vitodata 100 is established via mobile networks, e.g. with Vitocom 300, type GP2.

The connection menu is displayed in some screens. In the permanently visible area are the functions for connecting to the system.

If the connection menu is opened with , it will include the connection history together with date, time and connection status.
